Overview

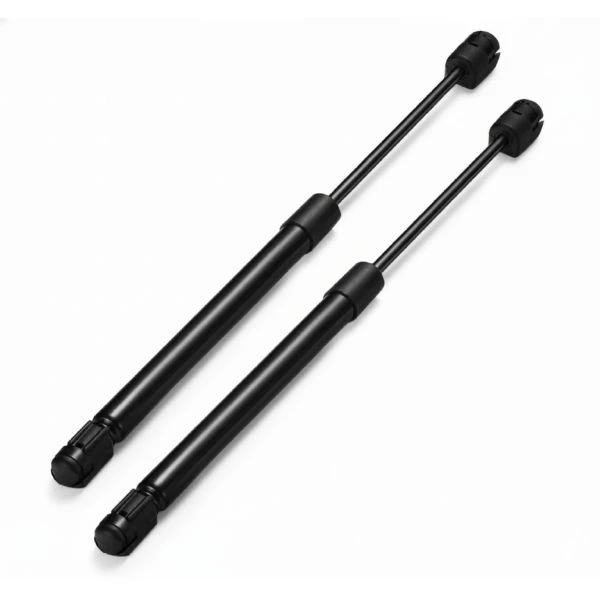

Open and hold your hatch or liftgate safely with Land hatch lift support struts (also called gas springs / lift supports / gas shocks / tailgate struts). Built for SUVs, vans, crossovers, marine hatches, and industrial panels, they deliver smooth lift and controlled soft closing without slamming.
Key Features
Size range: 12–28 inch extended length covers most hatch/liftgate layouts
Force options: 300–800N (≈67–180 lbf) for light to heavy doors
Smooth motion: nitrogen-charged with oil damping for soft-open/soft-close
Durable seals: low-leak NBR/PU seal pack for long service life (≥40,000 cycles)
Corrosion protection: black QPQ nitrided rod standard; SS304/SS316 available for coastal/marine use
All-weather: -30°C to +80°C (-22°F to +176°F) performance
Quick install: ball sockets/eyelets snap onto 10–13 mm studs; includes clip retainers
OEM/ODM: custom stroke, force, logos, brackets, and packaging
Specifications
| Lengths (extended) | 12", 14", 16", 18", 20", 22", 24", 26", 28" |
| Typical strokes | 60–200 mm (varies by length) |
| Forces | 300N, 400N, 500N, 600N, 700N, 800N (custom up to 1200N) |
| Cylinder/Rod | Ø18/8 mm or Ø22/10 mm; heavier-duty on request |
| Materials | powder-coated steel (std), stainless 304/316 (option) |
| End fittings | 10/13 mm ball sockets, metal eyelets, angle brackets, quick-release ends |
| Finish | matte black, polished stainless, or custom color |
| Compliance | RoHS/REACH-ready oils and finishes |
How to Choose (Quick Guide)
Measure length
With hatch open, measure center-to-center between mounts; choose an extended length close to that value.
Pick force
Small hatch/panel: 300–400N per strut
Medium liftgate: 500–600N per strut
Heavy glass/fiberglass door: 700–800N per strut
Use two struts to balance load and protect hinges.
Mounting orientation
Install rod end down when closed to keep seals lubricated and extend life.
Installation (Typical)
- Support the hatch safely.
- Pry the retaining clip slightly, push the socket onto the ball stud, then re-seat the clip.
- Cycle open/close to verify full travel and no interference.
Applications
SUV and Crossover Vehicles
- Power Liftgate Systems: Provide reliable support for electric and manual liftgate operations in modern SUVs
- Rear Glass Hatches: Specialized struts designed for independent rear window operation
- Third-Row Access: Support systems for vehicles with folding seat mechanisms
Passenger Car Applications
- Hatchback Rear Doors: Precision-engineered struts for compact and mid-size hatchbacks
- Sportback Systems: Tailored solutions for fastback and sportback style closures
- Wagon Rear Gates: Heavy-duty variants for station wagon and estate car applications
Commercial Vehicle Solutions
- Delivery Van Rear Doors: Robust struts capable of handling high-frequency commercial use
- Utility Vehicle Hatches: Durable systems for service and utility vehicle applications
- Fleet Vehicle Systems: Cost-effective solutions for commercial fleet maintenance
Specialized Applications
- Convertible Top Mechanisms: Support systems for retractable hardtop operations
- Accessory Door Support: Custom solutions for aftermarket and accessory installations
- RV Entry Systems: Heavy-duty struts for recreational vehicle applications
These hatch and liftgate gas struts (also known as liftgate supports, hatchback struts, rear door shocks, gas lift supports, or tailgate dampers) represent Land's commitment to automotive excellence. The vehicle-specific engineering ensures perfect fitment and optimal performance, while the advanced sealing technology guarantees long-term reliability in all climate conditions.
Land's expertise in automotive gas spring manufacturing guarantees these lift supports meet or exceed OEM performance standards. The precision calibration process ensures each strut delivers smooth, controlled operation while providing adequate support for vehicle-specific closure weights. These features make Land the preferred choice for automotive professionals and consumers seeking reliable replacement solutions.
